This is the second installment of the series on testing in Angular using Jasmine. In the first part of the tutorial, we wrote basic unit tests for the Pastebin class and the Pastebin component. The tests, which initially failed, were made green later.
Overview
Here is an overview of what we will be working on in the second part of the tutorial.
In this tutorial, we will be:
- creating new components and writing more unit tests
- writing tests for the component’s UI
- writing unit tests for the Pastebin service
- testing a component with inputs and outputs
- testing a component with routes
Let’s get started!
Adding a Paste (continued)
We were halfway through the process of writing unit tests for the AddPaste component. Here’s where we left off in part one of the series.
it('should display the `create Paste` button', () => { //There should a create button in view expect(element.innerText).toContain("create Paste"); }); it('should not display the modal unless the button is clicked', () => { //source-model is an id for the modal. It shouldn't show up unless create button is clicked expect(element.innerHTML).not.toContain("source-modal"); }) it('should display the modal when `create Paste` is clicked', () => { let createPasteButton = fixture.debugElement.query(By.css("button")); //triggerEventHandler simulates a click event on the button object createPasteButton.triggerEventHandler('click',null); fixture.detectChanges(); expect(element.innerHTML).toContain("source-modal"); }) })
As previously mentioned, we won’t be writing rigorous UI tests. Instead, we will write some basic tests for the UI and look for ways to test the component’s logic.
The click action is triggered using the DebugElement.triggerEventHandler()
method, which is a part of the Angular testing utilities.
The AddPaste component is essentially about creating new pastes; hence, the component’s template should have a button to create a new paste. Clicking the button should spawn a ‘modal window’ with an id ‘source-modal’ which should stay hidden otherwise. The modal window will be designed using Bootstrap; therefore, you might find lots of CSS classes inside the template.
The template for the add-paste component should look something like this:
The second and third tests do not give any information about the implementation details of the component. Here’s the revised version of add-paste.component.spec.ts.
it('should not display the modal unless the button is clicked', () => { //source-model is an id for the modal. It shouldn't show up unless create button is clicked expect(element.innerHTML).not.toContain("source-modal"); //Component's showModal property should be false at the moment expect(component.showModal).toBeFalsy("Show modal should be initially false"); }) it('should display the modal when `create Paste` is clicked',() => { let createPasteButton = fixture.debugElement.query(By.css("button")); //create a spy on the createPaste method spyOn(component,"createPaste").and.callThrough(); //triggerEventHandler simulates a click event on the button object createPasteButton.triggerEventHandler('click',null); //spy checks whether the method was called expect(component.createPaste).toHaveBeenCalled(); fixture.detectChanges(); expect(component.showModal).toBeTruthy("showModal should now be true"); expect(element.innerHTML).toContain("source-modal"); })
The revised tests are more explicit in that they perfectly describe the component’s logic. Here’s the AddPaste component and its template.
/* add-paste.component.ts */ export class AddPasteComponent implements OnInit { showModal: boolean = false; // Languages imported from Pastebin class languages: string[] = Languages; constructor() { } ngOnInit() { } //createPaste() gets invoked from the template. public createPaste():void { this.showModal = true; } }
The tests should still fail because the spy on addPaste
fails to find such a method in the PastebinService. Let’s go back to the PastebinService and put some flesh on it.
Writing Tests for Services
Before we proceed with writing more tests, let’s add some code to the Pastebin service.
public addPaste(pastebin: Pastebin): Promise{ return this.http.post(this.pastebinUrl, JSON.stringify(pastebin), {headers: this.headers}) .toPromise() .then(response =>response.json().data) .catch(this.handleError); }
addPaste()
is the service’s method for creating new pastes. http.post
returns an observable, which is converted into a promise using the toPromise()
method. The response is transformed into JSON format, and any runtime exceptions are caught and reported by handleError()
.
Shouldn’t we write tests for services, you might ask? And my answer is a definite yes. Services, which get injected into Angular components via Dependency Injection(DI), are also prone to errors. Moreover, tests for Angular services are relatively easy. The methods in PastebinService ought to resemble the four CRUD operations, with an additional method to handle errors. The methods are as follows:
- handleError()
- getPastebin()
- addPaste()
- updatePaste()
- deletePaste()
We’ve implemented the first three methods in the list. Let’s try writing tests for them. Here’s the describe block.
import { TestBed, inject } from '@angular/core/testing'; import { Pastebin, Languages } from './pastebin'; import { PastebinService } from './pastebin.service'; import { AppModule } from './app.module'; import { HttpModule } from '@angular/http'; let testService: PastebinService; let mockPaste: Pastebin; let responsePropertyNames, expectedPropertyNames; describe('PastebinService', () => { beforeEach(() => { TestBed.configureTestingModule({ providers: [PastebinService], imports: [HttpModule] }); //Get the injected service into our tests testService= TestBed.get(PastebinService); mockPaste = { id:999, title: "Hello world", language: Languages[2], paste: "console.log('Hello world');"}; }); });
We’ve used TestBed.get(PastebinService)
to inject the real service into our tests.
it('#getPastebin should return an array with Pastebin objects',async() => { testService.getPastebin().then(value => { //Checking the property names of the returned object and the mockPaste object responsePropertyNames = Object.getOwnPropertyNames(value[0]); expectedPropertyNames = Object.getOwnPropertyNames(mockPaste); expect(responsePropertyNames).toEqual(expectedPropertyNames); }); });
getPastebin
returns an array of Pastebin objects. TypeScript’s compile-time type checking can’t be used to verify that the value returned is indeed an array of Pastebin objects. Hence, we’ve used Object.getOwnPropertNames()
to ensure that both the objects have the same property names.
The second test follows:
it('#addPaste should return async paste', async() => { testService.addPaste(mockPaste).then(value => { expect(value).toEqual(mockPaste); }) })
Both the tests should pass. Here are the remaining tests.
it('#updatePaste should update', async() => { //Updating the title of Paste with id 1 mockPaste.id = 1; mockPaste.title = "New title" testService.updatePaste(mockPaste).then(value => { expect(value).toEqual(mockPaste); }) }) it('#deletePaste should return null', async() => { testService.deletePaste(mockPaste).then(value => { expect(value).toEqual(null); }) })
Revise pastebin.service.ts with the code for the updatePaste()
and deletePaste()
methods.
//update a paste public updatePaste(pastebin: Pastebin):Promise{ const url = `${this.pastebinUrl}/${pastebin.id}`; return this.http.put(url, JSON.stringify(pastebin), {headers: this.headers}) .toPromise() .then(() => pastebin) .catch(this.handleError); } //delete a paste public deletePaste(pastebin: Pastebin): Promise { const url = `${this.pastebinUrl}/${pastebin.id}`; return this.http.delete(url, {headers: this.headers}) .toPromise() .then(() => null ) .catch(this.handleError); }
Back to Components
The remaining requirements for the AddPaste component are as follows:
- Pressing the Save button should invoke the Pastebin service’s
addPaste()
method. - If the
addPaste
operation is successful, the component should emit an event to notify the parent component. - Clicking the Close button should remove the id ‘source-modal’ from the DOM and update the
showModal
property to false.
Since the above test cases are concerned with the modal window, it might be a good idea to use nested describe blocks.
describe('AddPasteComponent', () => { . . . describe("AddPaste Modal", () => { let inputTitle: HTMLInputElement; let selectLanguage: HTMLSelectElement; let textAreaPaste: HTMLTextAreaElement; let mockPaste: Pastebin; let spyOnAdd: jasmine.Spy; let pastebinService: PastebinService; beforeEach(() => { component.showModal = true; fixture.detectChanges(); mockPaste = { id:1, title: "Hello world", language: Languages[2], paste: "console.log('Hello world');"}; //Create a jasmine spy to spy on the addPaste method spyOnAdd = spyOn(pastebinService,"addPaste").and.returnValue(Promise.resolve(mockPaste)); }); }); });
Declaring all the variables at the root of the describe block is a good practice for two reasons. The variables will be accessible inside the describe block in which they were declared, and it makes the test more readable.
it("should accept input values", () => { //Query the input selectors inputTitle = element.querySelector("input"); selectLanguage = element.querySelector("select"); textAreaPaste = element.querySelector("textarea"); //Set their value inputTitle.value = mockPaste.title; selectLanguage.value = mockPaste.language; textAreaPaste.value = mockPaste.paste; //Dispatch an event inputTitle.dispatchEvent(new Event("input")); selectLanguage.dispatchEvent(new Event("change")); textAreaPaste.dispatchEvent(new Event("input")); expect(mockPaste.title).toEqual(component.newPaste.title); expect(mockPaste.language).toEqual(component.newPaste.language); expect(mockPaste.paste).toEqual(component.newPaste.paste); });
The above test uses the querySelector()
method to assign inputTitle
, SelectLanguage
and textAreaPaste
their respective HTML elements (,
, and
). Next, the values of these elements are replaced by the
mockPaste
‘s property values. This is equivalent to a user filling out the form via a browser.
element.dispatchEvent(new Event("input"))
triggers a new input event to let the template know that the values of the input field have changed. The test expects that the input values should get propagated into the component’s newPaste
property.
Declare the newPaste
property as follows:
newPaste: Pastebin = new Pastebin();
And update the template with the following code:
The extra divs and classes are for the Bootstrap’s modal window. [(ngModel)]
is an Angular directive that implements two-way data binding. (click) = "onClose()"
and (click) = "onSave()"
are examples of event binding techniques used to bind the click event to a method in the component. You can read more about different data binding techniques in Angular’s official Template Syntax Guide.
If you encounter a Template Parse Error, that’s because you haven’t imported the FormsModule
into the AppComponent.
Let’s add more specs to our test.
it("should submit the values", async() => { component.newPaste = mockPaste; component.onSave(); fixture.detectChanges(); fixture.whenStable().then( () => { fixture.detectChanges(); expect(spyOnAdd.calls.any()).toBeTruthy(); }); }); it("should have a onClose method", () => { component.onClose(); fixture.detectChanges(); expect(component.showModal).toBeFalsy(); })
component.onSave()
is analogous to calling triggerEventHandler()
on the Save button element. Since we have added the UI for the button already, calling component.save()
sounds more meaningful. The expect statement checks whether any calls were made to the spy. Here’s the final version of the AddPaste component.
import { Component, OnInit, Input, Output, EventEmitter } from '@angular/core'; import { Pastebin, Languages } from '../pastebin'; import { PastebinService } from '../pastebin.service'; @Component({ selector: 'app-add-paste', templateUrl: './add-paste.component.html', styleUrls: ['./add-paste.component.css'] }) export class AddPasteComponent implements OnInit { @Output() addPasteSuccess: EventEmitter= new EventEmitter (); showModal: boolean = false; newPaste: Pastebin = new Pastebin(); languages: string[] = Languages; constructor(private pasteServ: PastebinService) { } ngOnInit() { } //createPaste() gets invoked from the template. This shows the Modal public createPaste():void { this.showModal = true; } //onSave() pushes the newPaste property into the server public onSave():void { this.pasteServ.addPaste(this.newPaste).then( () => { console.log(this.newPaste); this.addPasteSuccess.emit(this.newPaste); this.onClose(); }); } //Used to close the Modal public onClose():void { this.showModal=false; } }
If the onSave
operation is successful, the component should emit an event signaling the parent component (Pastebin component) to update its view. addPasteSuccess
, which is an event property decorated with a @Output
decorator, serves this purpose.
Testing a component that emits an output event is easy.
describe("AddPaste Modal", () => { beforeEach(() => { . . //Subscribe to the event emitter first //If the emitter emits something, responsePaste will be set component.addPasteSuccess.subscribe((response: Pastebin) => {responsePaste = response},) }); it("should accept input values", async(() => { . . component.onSave(); fixture.detectChanges(); fixture.whenStable().then( () => { fixture.detectChanges(); expect(spyOnAdd.calls.any()).toBeTruthy(); expect(responsePaste.title).toEqual(mockPaste.title); }); })); });
The test subscribes to the addPasteSuccess
property just as the parent component would do. The expectation towards the end verifies this. Our work on the AddPaste component is done.
Uncomment this line in pastebin.component.html:
And update pastebin.component.ts with the below code.
//This will be invoked when the child emits addPasteSuccess event public onAddPaste(newPaste: Pastebin) { this.pastebin.push(newPaste); }
If you run into an error, it’s because you haven’t declared the AddPaste
component in Pastebin component’s spec file. Wouldn’t it be great if we could declare everything that our tests require in a single place and import that into our tests? To make this happen, we could either import the AppModule
into our tests or create a new Module for our tests instead. Create a new file and name it app-testing-module.ts:
import { BrowserModule } from '@angular/platform-browser'; import { NgModule } from '@angular/core'; //Components import { AppComponent } from './app.component'; import { PastebinComponent } from './pastebin/pastebin.component'; import { AddPasteComponent } from './add-paste/add-paste.component'; //Service for Pastebin import { PastebinService } from "./pastebin.service"; //Modules used in this tutorial import { HttpModule } from '@angular/http'; import { FormsModule } from '@angular/forms'; //In memory Web api to simulate an http server import { InMemoryWebApiModule } from 'angular-in-memory-web-api'; import { InMemoryDataService } from './in-memory-data.service'; @NgModule({ declarations: [ AppComponent, PastebinComponent, AddPasteComponent, ], imports: [ BrowserModule, HttpModule, FormsModule, InMemoryWebApiModule.forRoot(InMemoryDataService), ], providers: [PastebinService], bootstrap: [AppComponent] }) export class AppTestingModule { }
Now you can replace:
beforeEach(async(() => { TestBed.configureTestingModule({ declarations: [ AddPasteComponent ], imports: [ HttpModule, FormsModule ], providers: [ PastebinService ], }) .compileComponents(); }));
with:
beforeEach(async(() => { TestBed.configureTestingModule({ imports: [AppTestingModule] }) .compileComponents(); }));
The metadata that define providers
and declarations
have disappeared and instead, the AppTestingModule
gets imported. That’s neat! TestBed.configureTestingModule()
looks sleeker than before.
View, Edit, and Delete Paste
The ViewPaste component handles the logic for viewing, editing, and deleting a paste. The design of this component is similar to what we did with the AddPaste component.
The objectives of the ViewPaste component are listed below:
- The component’s template should have a button called View Paste.
- Clicking the View Paste button should display a modal window with id ‘source-modal’.
- The paste data should propagate from the parent component to the child component and should be displayed inside the modal window.
- Pressing the edit button should set
component.editEnabled
to true (editEnabled
is used to toggle between edit mode and view mode) - Clicking the Save button should invoke the Pastebin service’s
updatePaste()
method. - A click on the Delete button should invoke the Pastebin service’s
deletePaste()
method. - Successful update and delete operations should emit an event to notify the parent component of any changes in the child component.
Let’s get started! The first two specs are identical to the tests that we wrote for the AddPaste component earlier.
it('should show a button with text View Paste', ()=> { expect(element.textContent).toContain("View Paste"); }); it('should not display the modal until the button is clicked', () => { expect(element.textContent).not.toContain("source-modal"); });
Similar to what we did earlier, we will create a new describe block and place the rest of the specs inside it. Nesting describe blocks this way makes the spec file more readable and the existence of a describe function more meaningful.
The nested describe block will have a beforeEach()
function where we will initialize two spies, one for the updatePaste(
) method and the other for the deletePaste()
method. Don’t forget to create a mockPaste
object since our tests rely on it.
beforeEach(()=> { //Set showPasteModal to true to ensure that the modal is visible in further tests component.showPasteModal = true; mockPaste = {id:1, title:"New paste", language:Languages[2], paste: "console.log()"}; //Inject PastebinService pastebinService = fixture.debugElement.injector.get(PastebinService); //Create spies for deletePaste and updatePaste methods spyOnDelete = spyOn(pastebinService,'deletePaste').and.returnValue(Promise.resolve(true)); spyOnUpdate = spyOn(pastebinService, 'updatePaste').and.returnValue(Promise.resolve(mockPaste)); //component.paste is an input property component.paste = mockPaste; fixture.detectChanges(); })
Here are the tests.
it('should display the modal when the view Paste button is clicked',() => { fixture.detectChanges(); expect(component.showPasteModal).toBeTruthy("Show should be true"); expect(element.innerHTML).toContain("source-modal"); }) it('should display title, language and paste', () => { expect(element.textContent).toContain(mockPaste.title, "it should contain title"); expect(element.textContent).toContain(mockPaste.language, "it should contain the language"); expect(element.textContent).toContain(mockPaste.paste, "it should contain the paste"); });
The test assumes that the component has a paste
property that accepts input from the parent component. Earlier, we saw an example of how events emitted from the child component can be tested without having to include the host component’s logic into our tests. Similarly, for testing the input properties, it’s easier to do so by setting the property to a mock object and expecting the mock object’s values to show up in the HTML code.
The modal window will have lots of buttons, and it wouldn’t be a bad idea to write a spec to guarantee that the buttons are available in the template.
it('should have all the buttons',() => { expect(element.innerHTML).toContain('Edit Paste'); expect(element.innerHTML).toContain('Delete'); expect(element.innerHTML).toContain('Close'); });
Let’s fix up the failing tests before taking up more complex tests.
/* view-paste.component.ts */ export class ViewPasteComponent implements OnInit { @Input() paste: Pastebin; @Output() updatePasteSuccess: EventEmitter= new EventEmitter (); @Output() deletePasteSuccess: EventEmitter = new EventEmitter (); showPasteModal:boolean ; readonly languages = Languages; constructor(private pasteServ: PastebinService) { } ngOnInit() { this.showPasteModal = false; } //To make the modal window visible public showPaste() { this.showPasteModal = true; } //Invoked when edit button is clicked public onEdit() { } //invoked when save button is clicked public onSave() { } //invoked when close button is clicked public onClose() { this.showPasteModal = false; } //invoked when Delete button is clicked public onDelete() { } } Being able to view the paste is not enough. The component is also responsible for editing, updating, and deleting a paste. The component should have an
editEnabled
property, which will be set to true when the user clicks on the Edit paste button.it('and clicking it should make the paste editable', () => { component.onEdit(); fixture.detectChanges(); expect(component.editEnabled).toBeTruthy(); //Now it should have a save button expect(element.innerHTML).toContain('Save'); });Add
editEnabled=true;
to theonEdit()
method to clear the first expect statement.The template below uses the
ngIf
directive to toggle between view mode and edit mode.is a logical container that is used to group multiple elements or nodes.
The component should have two
Output()
event emitters, one forupdatePasteSuccess
property and the other fordeletePasteSuccess
. The test below verifies the following:
- The component’s template accepts input.
- The template inputs are bound to the component’s
paste
property.- If the update operation is successful,
updatePasteSuccess
emits an event with the updated paste.it('should take input values', fakeAsync(() => { component.editEnabled= true; component.updatePasteSuccess.subscribe((res:any) => {response = res},) fixture.detectChanges(); inputTitle= element.querySelector("input"); inputTitle.value = mockPaste.title; inputTitle.dispatchEvent(new Event("input")); expect(mockPaste.title).toEqual(component.paste.title); component.onSave(); //first round of detectChanges() fixture.detectChanges(); //the tick() operation. Don't forget to import tick tick(); //Second round of detectChanges() fixture.detectChanges(); expect(response.title).toEqual(mockPaste.title); expect(spyOnUpdate.calls.any()).toBe(true, 'updatePaste() method should be called'); }))The obvious difference between this test and the previous ones is the use of the
fakeAsync
function.fakeAsync
is comparable to async because both the functions are used to run tests in an asynchronous test zone. However,fakeAsync
makes your look test look more synchronous.The
tick()
method replacesfixture.whenStable().then()
, and the code is more readable from a developer’s perspective. Don’t forget to importfakeAsync
and tick from@angular/core/testing
.Finally, here is the spec for deleting a paste.
it('should delete the paste', fakeAsync(()=> { component.deletePasteSuccess.subscribe((res:any) => {response = res},) component.onDelete(); fixture.detectChanges(); tick(); fixture.detectChanges(); expect(spyOnDelete.calls.any()).toBe(true, "Pastebin deletePaste() method should be called"); expect(response).toBeTruthy(); }))We’re nearly done with the components. Here’s the final draft of the
ViewPaste
component./*view-paste.component.ts*/ export class ViewPasteComponent implements OnInit { @Input() paste: Pastebin; @Output() updatePasteSuccess: EventEmitter= new EventEmitter (); @Output() deletePasteSuccess: EventEmitter = new EventEmitter (); showPasteModal:boolean ; editEnabled: boolean; readonly languages = Languages; constructor(private pasteServ: PastebinService) { } ngOnInit() { this.showPasteModal = false; this.editEnabled = false; } //To make the modal window visible public showPaste() { this.showPasteModal = true; } //Invoked when the edit button is clicked public onEdit() { this.editEnabled=true; } //Invoked when the save button is clicked public onSave() { this.pasteServ.updatePaste(this.paste).then( () => { this.editEnabled= false; this.updatePasteSuccess.emit(this.paste); }) } //Invoked when the close button is clicked public onClose() { this.showPasteModal = false; } //Invoked when the delete button is clicked public onDelete() { this.pasteServ.deletePaste(this.paste).then( () => { this.deletePasteSuccess.emit(this.paste); this.onClose(); }) } } The parent component (pastebin.component.ts) needs to be updated with methods to handle the events emitted by the child component.
/*pastebin.component.ts */ public onUpdatePaste(newPaste: Pastebin) { this.pastebin.map((paste)=> { if(paste.id==newPaste.id) { paste = newPaste; } }) } public onDeletePaste(p: Pastebin) { this.pastebin= this.pastebin.filter(paste => paste !== p); }Here’s the updated pastebin.component.html:
{{paste.id}} {{paste.title}} {{paste.language}} Setting Up Routes
To create a routed application, we need a couple more stock components so that we can create simple routes leading to these components. I’ve created an About component and a Contact component so that we can fit them inside a navigation bar.
AppComponent
will hold the logic for the routes. We will write the tests for routes after we’re finished with them.First, import
RouterModule
andRoutes
intoAppModule
(andAppTestingModule
).import { RouterModule, Routes } from '@angular/router';Next, define your routes and pass the route definition to the
RouterModule.forRoot
method.const appRoutes :Routes = [ { path: '', component: PastebinComponent }, { path: 'about', component: AboutComponent }, { path: 'contact', component: ContactComponent}, ]; imports: [ BrowserModule, FormsModule, HttpModule, InMemoryWebApiModule.forRoot(InMemoryDataService), RouterModule.forRoot(appRoutes), ],Any changes made to the
AppModule
should also be made to theAppTestingModule
. But if you run into a No base href set error while executing the tests, add the following line to your AppTestingModule’sproviders
array.{provide: APP_BASE_HREF, useValue: '/'}Now add the following code to app.component.html.
routerLink
is a directive that is used to bind an HTML element with a route. We’ve used it with the HTML anchor tag here.RouterOutlet
is another directive that marks the spot in the template where the router’s view should be displayed.Testing routes is a bit tricky since it involves more UI interaction. Here’s the test that checks whether the anchor links are working.
describe('AppComponent', () => { beforeEach(async(() => { TestBed.configureTestingModule({ imports: [AppTestingModule], }).compileComponents(); })); it(`should have as title 'Pastebin Application'`, async(() => { const fixture = TestBed.createComponent(AppComponent); const app = fixture.debugElement.componentInstance; expect(app.title).toEqual('Pastebin Application'); })); it('should go to url', fakeAsync((inject([Router, Location], (router: Router, location: Location) => { let anchorLinks,a1,a2,a3; let fixture = TestBed.createComponent(AppComponent); fixture.detectChanges(); //Create an array of anchor links anchorLinks= fixture.debugElement.queryAll(By.css('a')); a1 = anchorLinks[0]; a2 = anchorLinks[1]; a3 = anchorLinks[2]; //Simulate click events on the anchor links a1.nativeElement.click(); tick(); expect(location.path()).toEqual(""); a2.nativeElement.click(); tick() expect(location.path()).toEqual("/about"); a3.nativeElement.click(); tick() expect(location.path()).toEqual("/contact"); })))); });If everything goes well, you should see something like this.
Final Touches

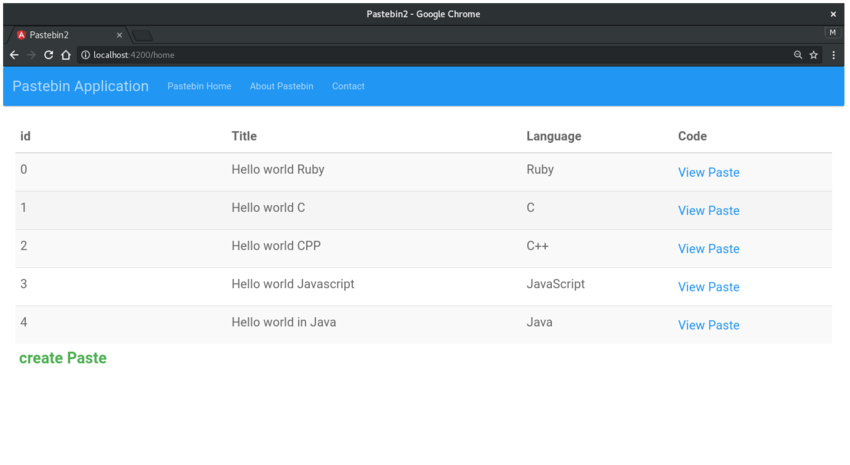

Add a nice-looking Bootstrap design to your project, and serve your project if you haven’t done that already.
ng serveSummary
We wrote a complete application from scratch in a test-driven environment. Isn’t that something? In this tutorial, we learned:
- how to design a component using the test first approach
- how to write unit tests and basic UI tests for components
- about Angular’s testing utilities and how to incorporate them into our tests
- about using
async()
andfakeAsync()
to run asynchronous tests - the basics of routing in Angular and writing tests for routes
I hope you enjoyed the TDD workflow. Please get in touch via the comments and let us know what you think!
